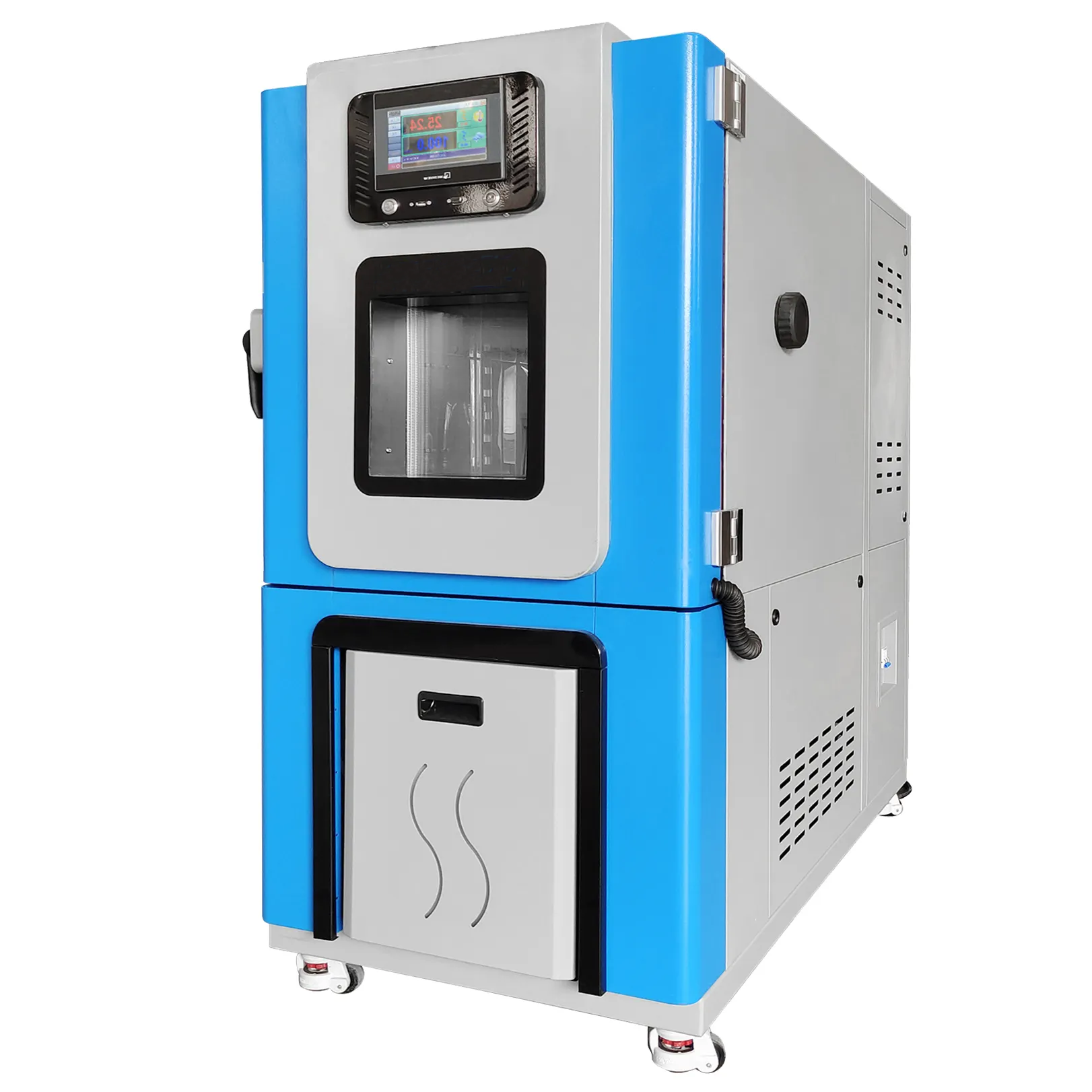

Temperature and Humidity Climate Test Chamber
Product Description:
The Temperature and Humidity Test Chamber is an essential and highly versatile piece of equipment in the field of materials and product testing. Its primary function is to comprehensively assess the performance of materials across a wide spectrum of environmental conditions.
The Temperature and Humidity Test Chamber is a fundamental tool for industries seeking to produce high - quality, reliable products that can perform well in diverse environmental conditions.
In the food industry, the test chamber is used to study the shelf - life and quality of food products under different environmental conditions. It helps in determining the optimal storage conditions for food items. In the chemical industry, it is used to test the stability of chemicals and chemical products, ensuring their safety and effectiveness.
Building materials such as concrete, wood, and insulation materials need to withstand the environmental conditions of the building's location. The chamber helps in evaluating their performance over time, ensuring the durability and safety of buildings.
Specification:
| Internal dimension (W*D*H) | 400*500*500mm |
| External dimension (W*D*H) | 600*1280*1380mm |
| Temperature range | -70~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor x 2sets |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage
Over-temperature
Compressor overvoltage and overload
Heater short circuit
Water shortage |
Hot-Sale Products:
Company Information:
Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.
At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
